Ducati Panigale V4 2025-2026 - Ohlins TTX GP (DU 568)

£1,531.00

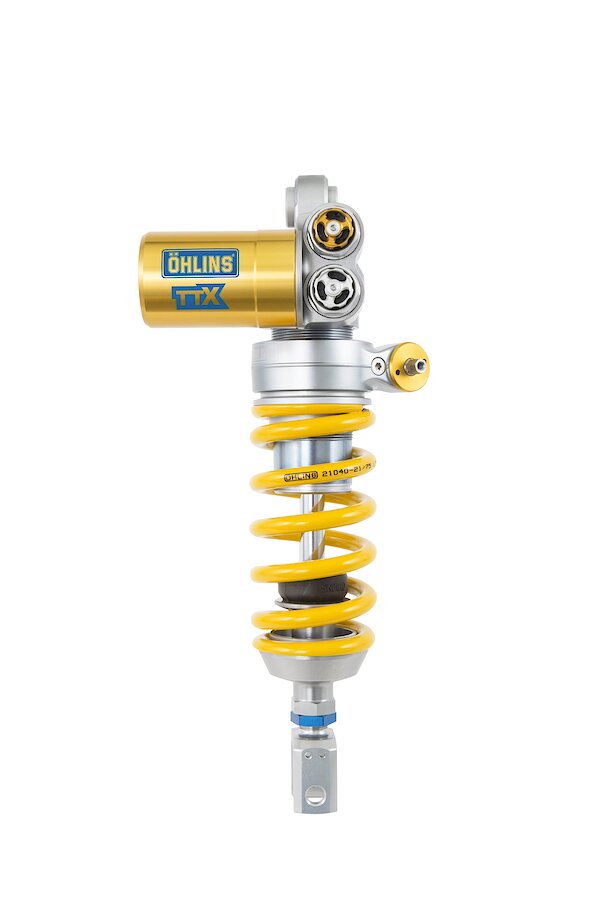

Give your bike a winning edge with the Öhlins TTX GP shock absorber. Developed straight from the MotoGP circuit, this shock is the result of our close collaboration with some of the top race teams in motorsport. Experience racing-caliber control, stability, and handling as you conquer the track with confidence.

Öhlins TTX technology maintains pressure balance in the shock, giving you more precise and consistent damping characteristics, even under the most demanding track conditions. Compression and rebound damping functions are kept separate, with MotoGP-inspired adjuster knobs and a wider adjustment range to help you fine-tune the damping behavior. Adjustments to compression and rebound damping can be made by hand or with a hex key.

The TTX GP is equipped with stiffer tubes to reduce suspension flex, ensuring optimal stability on track. The shock valves – treated with a special surface coating – not only enhance chassis feedback, but also improve damping consistency and traction at high speeds, allowing you to accelerate earlier out of turns.

  • Twin Tube
  • Piston Diameter: 36 mm
  • Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
  • Adjustable rebound damping.
  • Adjustable compression damping.
  • Integrated hydraulic spring preload adjuster.
Fitting Guide
Detailed Specs

Length (mm): 282 mm

Recommended Oil:

Mounting Position: Rear Mono

Stroke (mm):

Rate (N/mm): 85 N/mm
