Suzuki RM 85 2005-2024 - Ohlins STX 46 MX (DMX 0105)

Adjustment Possibilities

• Low speed rebound damping
• Low speed compression damping
• High speed compression damping
• Spring preload

Purchased Parts Package

• Shock absorber STX46
• Spring (select for riders weight, see mounting instruction)
• Owners manual and mounting instruction

Öhlins MX & Enduro shock absorbers are delivered without springs. The correct spring for the riders weight must be ordered separately. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.

• Single tube
• Piston Diameter: 46 mm

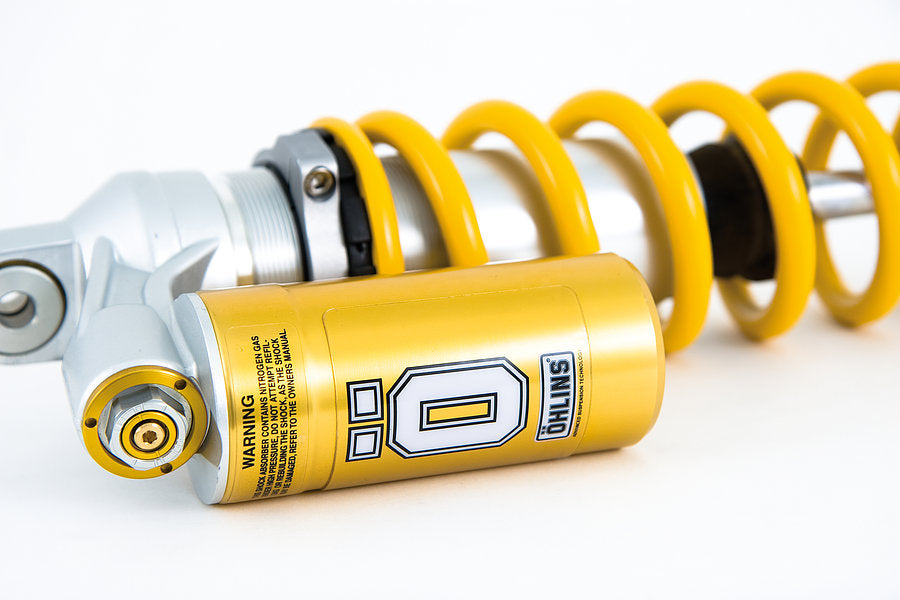

• Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
• Shock absorber delivered without spring, needs to be ordered separately.
• Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
• Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.
• Fitting Guide.
