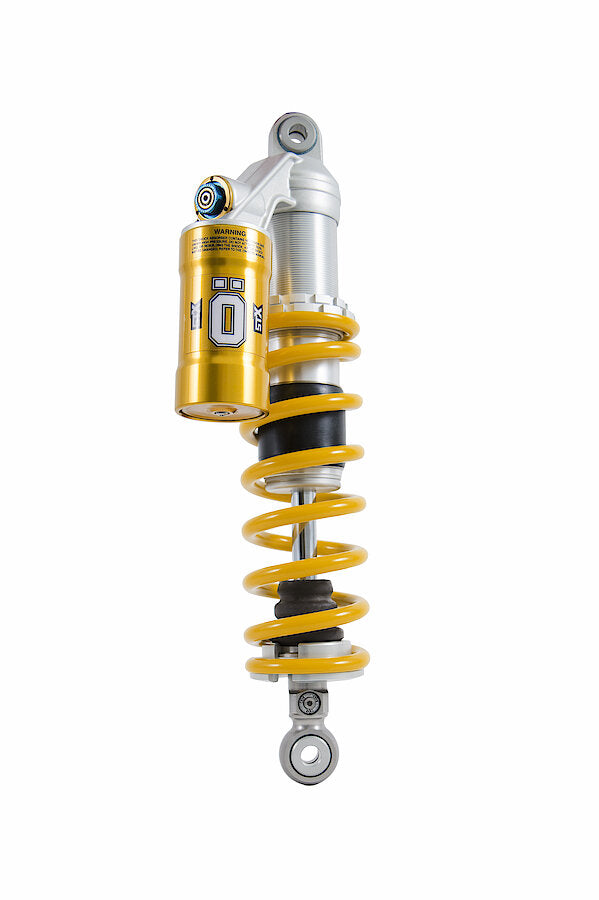

Yamaha YZ 85 2019-2025 - Ohlins STX 46 MX (DMX 0104)

Öhlins MX & Enduro shock absorbers are delivered without springs. The correct spring for the riders weight must be ordered separately. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.

• Single tube
• Piston Diameter: 46 mm
• Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
• Shock absorber delivered without spring, needs to be ordered separately.
• Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
• Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.
• Fitting Guide.
