Subaru Impreza 2007-2016 (SUS MI10S1)

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

Springs included.

General Features:

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

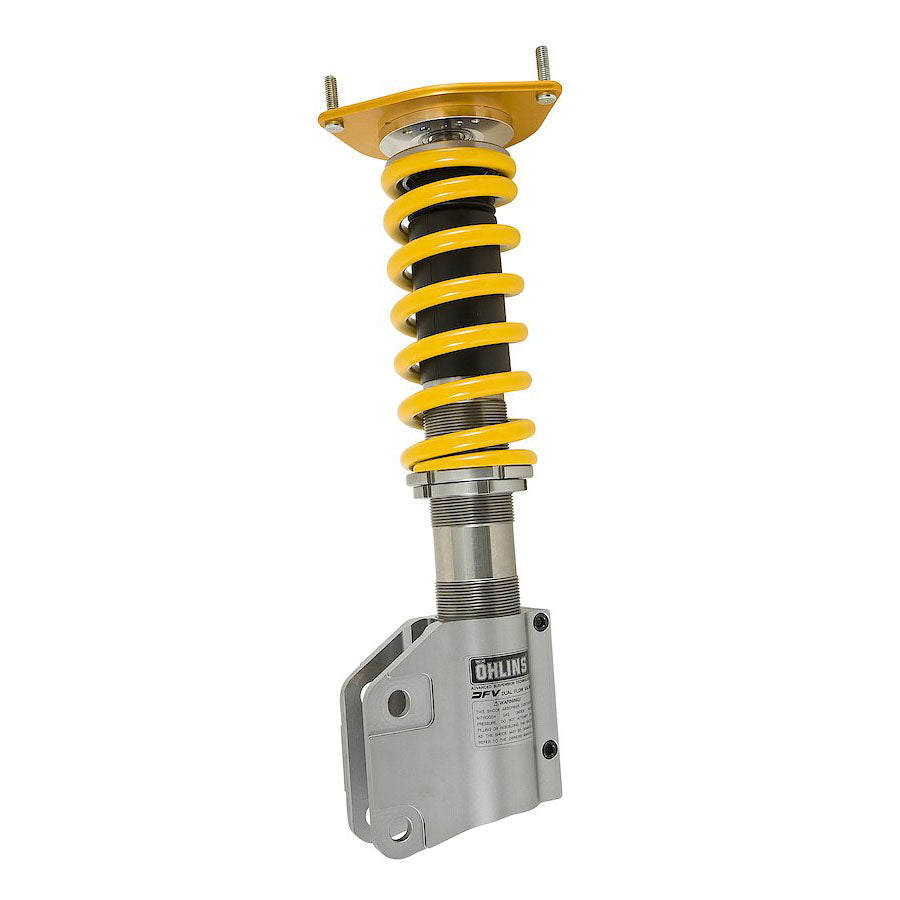

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 20 mm lower than standard with recommended setup models GRB/GRF
• Approx. 25 mm lower than standard with recommended setup model VAF
• Heigth adjustment range -10/+15 mm
• Spring rate 90 N/mm

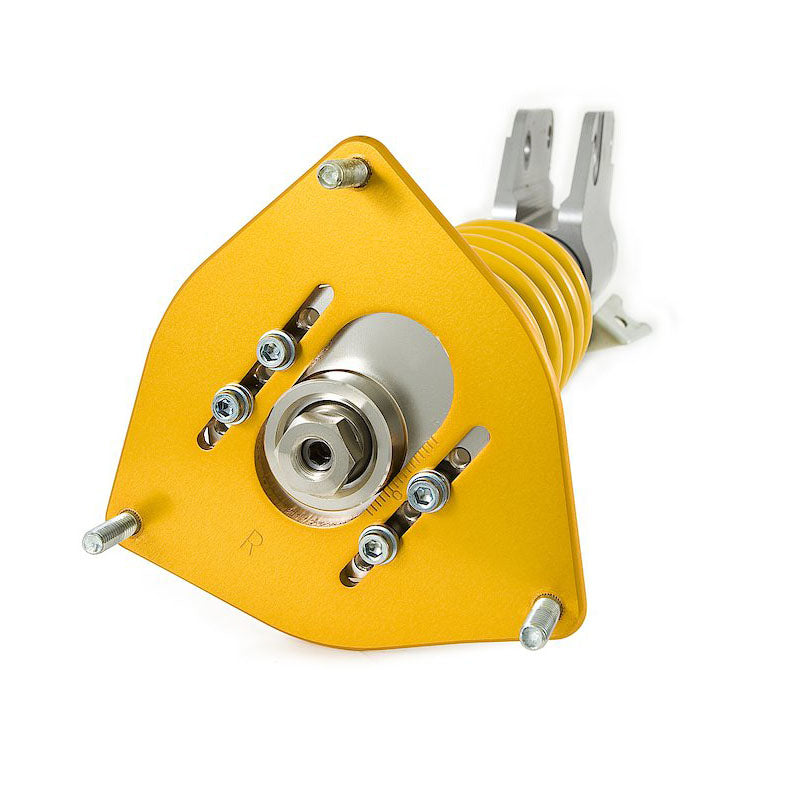

• Aluminium top mounts with adjustable camber

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 20 mm lower than standard with recommended setup models GRB/GRF
• Approx. 15 mm lower than standard with recommended setup model VAF
• Heigth adjustment range -15/+15 mm
• Spring rate 70 N/mm
• Aluminium top mounts

Fitting Guide.
